C-VISION BENCHTOP VIDEO CONTOUR PROJECTOR
Videos
TECHNICAL DATA

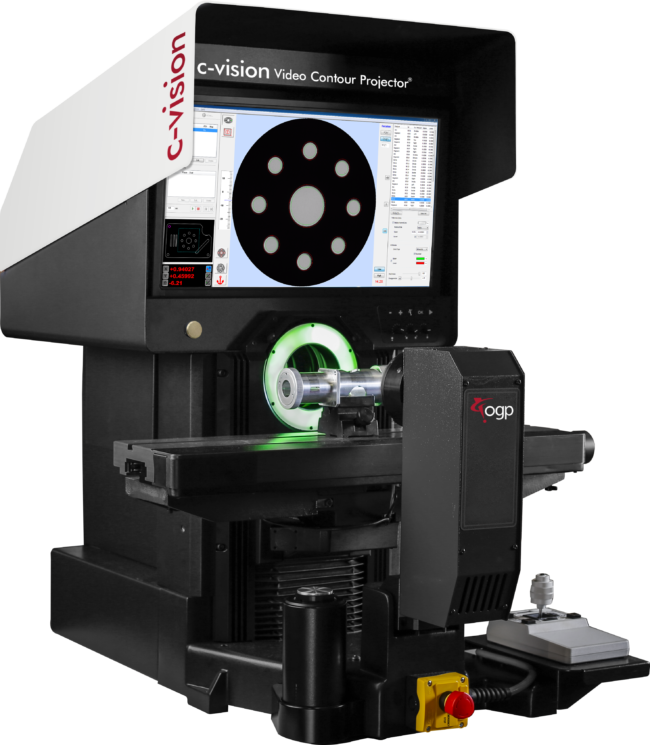

c-vision™ Benchtop Video Contour Projector® is an easy to use, dual-magnification benchtop video contour projector. This rugged horizontal optical comparator features a compact footprint that uses very little floor space. Its rugged design and 60 lb load capacity put advanced automatic video measurement capability to work right where it is needed. Precision optics and SNAP-X™ Compare electronic overlay charts make comparative inspections easy. c-vision Benchtop provides:
Accurate Image with exceptionally low distortion over entire 3-inch viewing area – Telecentric dual magnification optical system with advanced digital imaging technology
Shop hardened and convenient benchtop – High payload capacity, easy to use interface. Motorized XY table motion with precision linear scales and manual fine adjusters
Display both standard and custom overlay charts – SNAP-X™ Compare software
XY TRAVEL
15” x 6” x 2”
18” x 6” x 2”
OPTICS
Telecentric, upright and corrected image with 3-inch low mag field of view and 4X high mag lens
ILLUMINATION
Profile Light
Coaxial Light
Oblique Surface Illumination
WORKTABLE
Motorized, hard coat anodized aluminum with dovetail slot and ±7.5° helix angle range
