EA8S ADVANCE SINKER EDM

Perfect for small part, medical production, and tool and mold work – our smallest Sinker EDM.

The Mitsubishi EA8S Advance represents over 50 years of continuous innovation in sinker EDM technology from one of the most well-recognized industrial machining brands in the world.The first machine in our EA-S series, the EA8S Advance is a compact sinker EDM designed to support various fine and micro-fine machining needs in a productive, cost-efficient way—all while being easy to own and operate.

Get a Quote

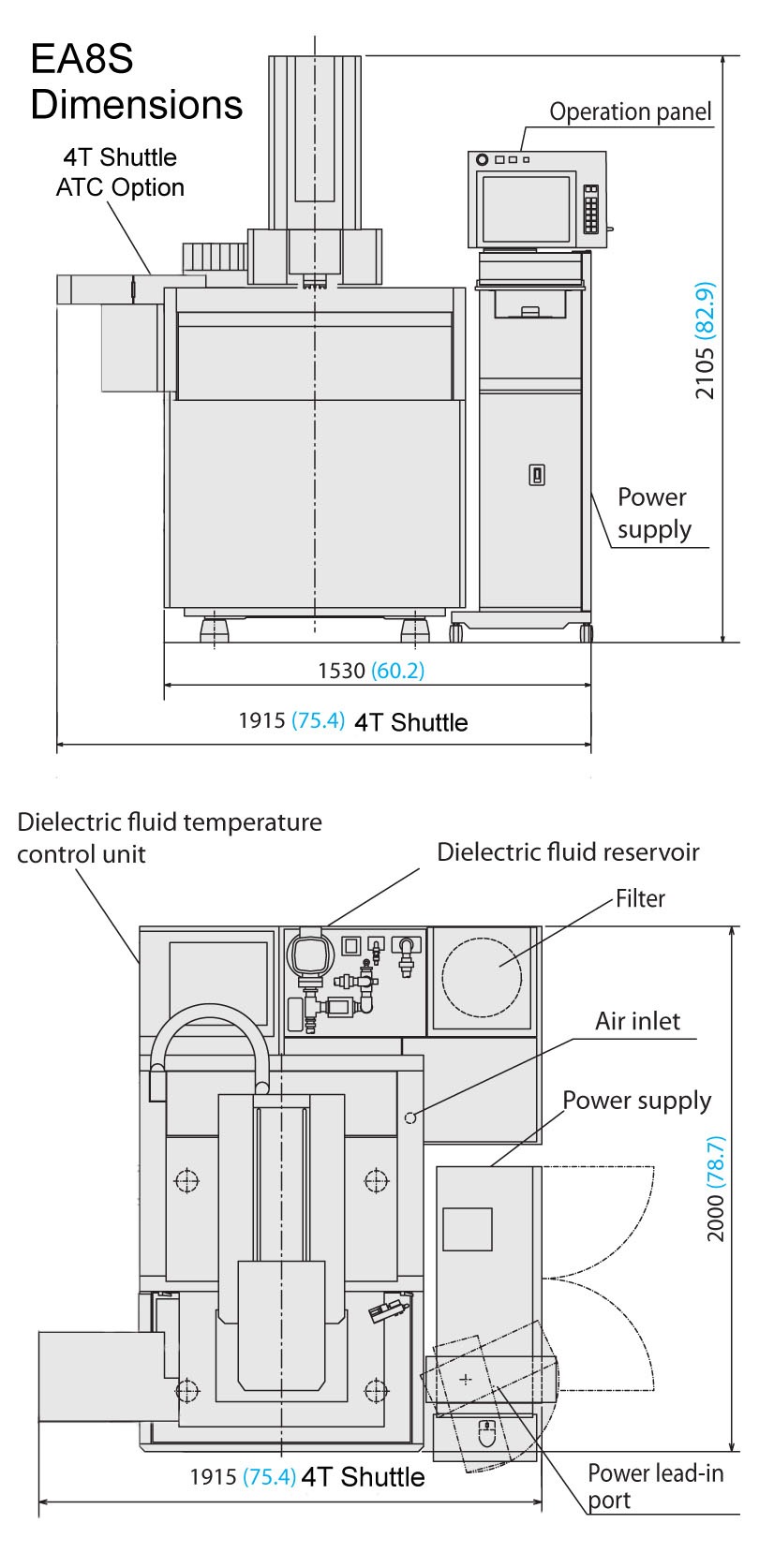

Benefits Details Specs Floor Plan

RELIABLE OPERATION

Highly durable components keep maintenance costs in their place while meeting project requirements.

EASY TO USE

On-board automation, easy-access part design, and useful user interfaces make this machine easy to set up and run.

COST-CONSCIOUS PRODUCTIVITY

Designed to help you stay productive and profitable with components engineered to lower resource and energy consumption.

CAPABILITIES:

FP80S energy-saving power supply achieves 20% less electricity consumption compared to previous models
Power Master GF2 adaptive control reduces downtime and minimizes maintenance and part replacement costs by creating 80% less electrode wear
SS Jump 5 system grants users greater acceleration control to stabilize high-speed no-flush burning
Fuzzy Pro Plus enables greater hands-off operation for better usability
PS circuit standard allows for fine finishing

COMPONENTS:

FP80S power supply (provides 80 peak AMPs)
Compact, highly rigid machine design
Fixed table traveling column construction
Direct drive AC smart servo system
3D lateral servo system
3-sided drop tank access
Power Master GF2 adaptive control
Easy-access filter system
Dielectric fluid emission

ON-BOARD AUTOMATION:

Automatic lubrication system

USER INTERFACE:

M700 series CNC control with 15” touchscreen

SYSTEM INFORMATION:

40GB hard drive with a 1GB partition for user program storage
S.P.E.R. Advance program support functions

ADDITIONAL BENEFITS:

Full 1-year warranty with Triple Diamond Partnership Program
remote360-enabled (remote user monitoring, diagnostics, service support, and more)
Comes with one complimentary preventative maintenance visit—to be used by the end of 1^styear

Machine Travels: X x Y x Z in (mm)	11.8 x 9.8 x 9.8 (300 x 250 x 250)
Max. Dielectric Fluid Level: in (mm)	3.4 ~ 9.8 (87 ~ 250)
Power Supply (Option) / Peak Current	FP80S / 80 AMPs
Internal Worktank Dimensions: W x D x H in (mm)	31.5 x 20.5 x 11.8 (800 x 520 x 300)
Max. Workpiece Weight: lb (kg)	1,214 (551)
Table Dimensions: W x D in (mm)	19.7 x 13.8 (500 x 350)
Max. Electrode Weight: lb (kg)	55 (25)
Table to Platen Distance Min.~ Max.: in (mm)	5.9 ~ 15.7 (150 ~ 400)
Table to C Axis Chuck Distance Min.~ Max.: in (mm)	5.9 ~ 15.7 (150 ~ 400) EROWA ITS Chuck
Table to C Axis Chuck Distance Min.~ Max.: in (mm)	5.2 ~ 15.1 (133 ~ 383) 3R MACRO Chuck
Filters / Type	1 pc. / Paper Cartridge
Machine System Weight: lb (kg)	4,400 (1,996)
C Axis Min. Indexing Angle / Drive Unit	0.001 ̊/ 0.001 ̊
C Axis RPM Range	1 to 30
Fluid Temp. Control	Chiller
Table to Platen Distance:in (mm)	5.9 -15.7 (150 -400)
Machine Unit Dimensions: W x D x H in (mm)	60.2 x 78.7 x 82.9 (1,530 x 2,000 x 2,106)
Control Unit Program Support Function	E.S.P.E.R Advance
Control Unit Machining Function	Fuzzy Pro 3 Plus
Control Unit Graphic Display Function	15” TFT color LCD
Control Unit CPU / Type	64-bit / PC
Dielectric Fluid System Reservoir Capacity: gal (L)	69 (262)
Installation Dimensions: W x D in (mm)	64.3 x 78.7 (1,634 x 2,000) wATC
Floor Space Requirement: sq ft	35.2
C Axis Max. Electrode Weight:lb (kg)	11 (5)
