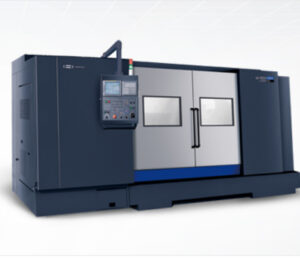

Hi-Tech 550 Turning Center
Hi-TECH 550
15″-18″ Chucker Horizontal Turning Center
HIGH PERFORMANCE MID-SIZE 15″-18″ HORIZONTAL TURNING CENTER
Hi-TECH 550 is equipped with the extra rigid tool post of highest durability to deliver the most stable, precision machining performance even at hard turning.
Videos
Specifications
Item | Hi-TECH 550 A / AMC | Hi-TECH 550 AL / ALMC | Hi-TECH 550 AXL / AXLMC | Hi-TECH 550 B / BMC | Hi-TECH 550 BL / BLMC | Hi-TECH 550 BXL / BXLMC | |
l Capacity | |||||||
Swing over Bed | mm(inch) | Ø800 (Ø31.50”) | |||||
Max. Cutting Diameter | mm(inch) | Ø590 (Ø23.23”) | |||||
Standard Cutting Diameter | mm(inch) | Std.: Ø387 (Ø15.23”), MC: Ø275 (Ø10.83”) | |||||
Max. Cutting Length | mm(inch) | 1,100 (43.31”) | 2,100 (82.68”) | 3,200 (125.98”) | 1,100 (43.31”) | 2,100 (82.68”) | 3,200 (125.98”) |
Chuck Size | inch | 15″ | 18″ | ||||
l Spindle | |||||||
Type of Spindle Nose | ASA | A2-11 | |||||
Max. Spindle Speed | rpm | 2,000 | 1,800 | ||||
Through Spindle Hole Diameter | mm(inch) | Ø132 (Ø5.20”) | |||||
Max. Bar Size | mm(inch) | Ø116 (Ø4.57”) | |||||
Spindle Bearing Inner Diameter | mm(inch) | Ø180 (Ø7.09”) | |||||
Spindle Motor | kW(HP) | 30/22 (40/30) | |||||
l Turret | |||||||
Number of Tool Station | ea | Std.: 10(Opt.: 12), MC: 12 | |||||
Tool Size | mm(inch) | □ 32 × Ø60 (□1.25” × Ø2.5”) | |||||
Turret Indexing Time | Sec/Step | 0.2 | |||||
l Axes | |||||||
Rapid Speed (X/Z) | m/min | 20/24 | 20/20 | 20/10 | 20/24 | 20/20 | 20/10 |
Max. Stroke (X/Z) | mm(inch) | 345/1,150 (13.58”/45.28”) |
345/2,150 (13.58”/84.65”) |
345/3,250 (13.58”/127.95”) |
345/1,150 (13.58”/45.28”) |
345/2,150 (13.58”/84.65”) |
345/3,250 (13.58”/127.95”) |
Feed Motor (X/Z) | kW(HP) | 4/4 (5.4/5.4) | 4/7 (5.4/9.5) | 4/7 (5.4/9.5) | 4/4 (5.4/5.4) | 4/7 (5.4/9.5) | 4/7 (5.4/9.5) |
