QL-20 CONTOUR PROJECTORS HIGH CAPACITY OPTICAL COMPARATOR
TECHNICAL DATA

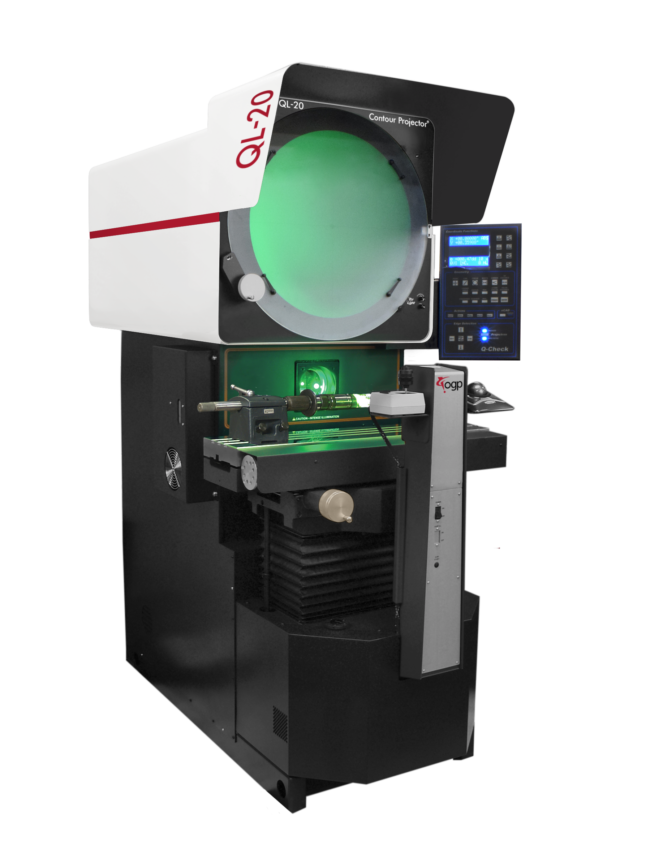

The QL-20™ Contour Projector® is a precision instrument designed for the shop floor. QL-20 has extensive standard features and a range of options that allow users to configure a system to meet specific measurement needs. QL-20 has an upright and unreversed image, as well as a high load capacity, cast iron, nickel-plated worktable. The QL-20 offers:
Fast and easy measurements – Eye level 24-inch diameter glass screen with 20-inch viewing area and conveniently located DRO
Adjustable for variable intensity light control- Versatile TruLight® LED lighting illumination
Ideal for real world, shop floor environments in a benchtop configuration – High load capacity, nickel-plated worktable easily accommodates large, heavy machined parts and fixtures
Full automation – Optional VidiProbe video measurement and eCAD® virtual chart gage systems
XY TRAVEL
15” x 9”
15” x 10”, 18” x 9”, 18” x 10”
OPTICS
10X lens
20X, 31.25X, 50X, 62.5X, 100X
ILLUMINATION
Profile Light
Coaxial Light
SCREEN
24” diameter ground glass screen, with 20″ viewing area, integral hood, 90° centerlines and clips for mounting standard overlay charts.
WORKTABLE
Motorized, heavy-duty nickel-clad cast-iron with dovetail slot
±7.5° helix angle range
