RADIAN 3D Laser Tracker Systems

The API Arm provides an ideal combination of contact and non-contact measurement. The innovative design utilizes top of the line
materials to provide a reliable, portable, and lightweight coordinate measuring machine.
Applications include: Dimensional Analysis Quality Control Rapid Prototyping First Article Inspection Reverse Engineering Surface Acquisition
PORTABLE CMM MEASUREMENT
THE SMALLEST, LIGHTEST, MOST ACCURATE LASER MEASURMENT TOOL
DESIGNED FOR DURABILITY
API’s compact and rigid UNIBODY tracker design allows for shaft mounted motors, encoders and laser. The UNIBODY shaft mounted laser innovation minimizes Abbe offset errors, while also housing laser source, optics, camera and major head electronics in the center of the tracker body.
QUICK & EFFICIENT WARM-UP TIME
The UNIBODY, and the centering of all heat sources, allows rapid distribution of heat throughout the body during warm-up or drastic ambient temperature variations’ ensuring the tracker body maintains constant heat equilibrium throughout its operation resulting in shorter warm-up time and superior measurement stability.
AIR-OVER COOLING TEMPERATURE STABILITY
The rigid UNIBODY instrument casting offers innovative “air-over cooling” minimizing thermal effects, providing increased temperature stability, faster start-up times and further reducing instrument error enhancing overall measuring performance. Competitive trackers with side-mounted lasers create unbalanced heat sources requiring complex and lengthy warm-up routines involving extended thermal stabilization periods before accurate measurements can be performed.
WIRELESS CONNECTIVITY
Integrated controller offers cable-less and hazard free tracker operation in confined spaces. Onboard Wi-Fi reduces system setup and provides for seamless operation.
EFFORTLESS RECAPTURE WITH AUTOLOCK
Autolock functionality allows rapid recapture of a lost laser beam and provides effortless usability for difficult to access and interrupted line of sight measurements. Integral tracker battery provides 4 hours of operation for remote applications extendable to 8 hours with the external power pack.
TECHNICAL SPECIFICATIONS
Axis | Working Volume | Scanning Performance | Probing Performance | |||

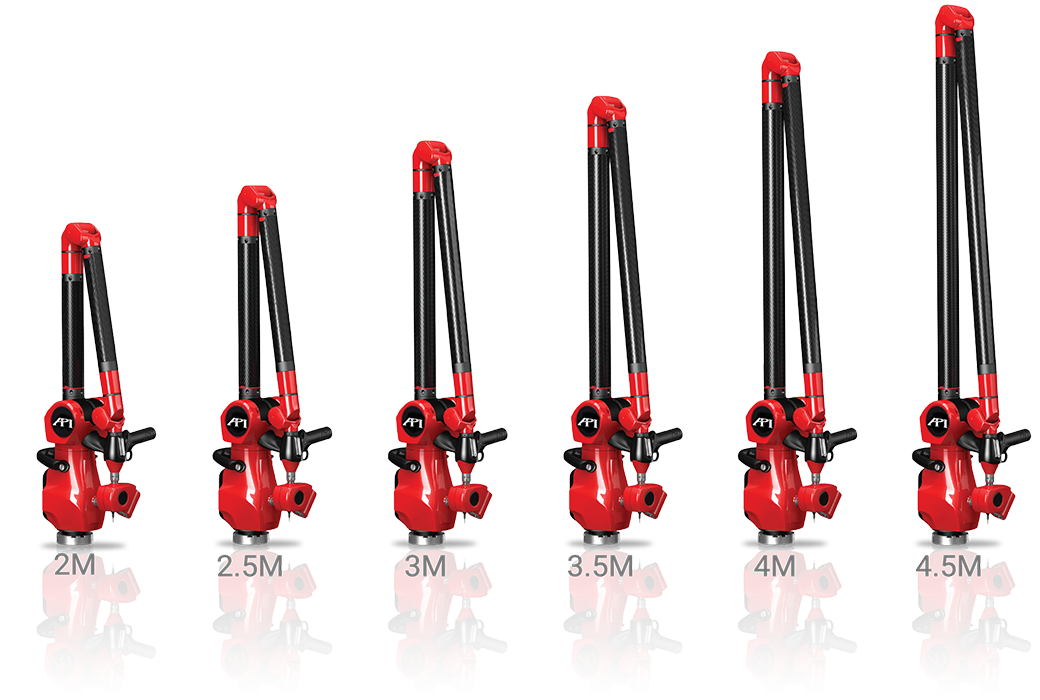

API Arm w/EYES | API Arm w/WIDE | API Arm w/OPEN |
Single Point Repeatability
|
Volumetric Accuracy
|
||
7 | 2m | 0.038mm | 0.042mm | 0.047mm | 0.022mm | 0.032mm |
7 | 2.5m | 0.044mm | 0.048mm | 0.053mm | 0.027mm | 0.038mm |
7 | 3m | 0.057mm | 0.061mm | 0.066mm | 0.042mm | 0.051mm |
7 | 3.5m | 0.068mm | 0.072mm | 0.077mm | 0.054mm | 0.062mm |
7 | 4m | 0.080mm | 0.084mm | 0.089mm | 0.069mm | 0.074mm |
7 | 4.5m | 0.095mm | 0.099mm | 0.104mm | 0.078mm | 0.089mm |
3D Scanner Specifications
EYES | WIDE | OPEN | |
Max Scanning Speed | 600,000 pts/sec | 600,000 pts/sec | 200,000 pts/sec |
Accuracy | ∓ 9 μm | ∓ 15 μm | ∓ 20 μm |
Max Laser Line Width | 100mm | 200mm | 100mm |
Max Frequency | 300Hz | 300Hz | 200Hz |
Laser Class | Blue, Class 2M | Blue, Class 2M | Blue, Class 2M |
Line Resolution | 25 μm | 50 μm | 50 μm |
Stand-off Distance | 90mm | 85mm | 85mm |
Field of View | 80mm | 110mm | 110mm |
LED Indicators | YES | YES | NO |
Temperature Compensation | YES | YES | NO |

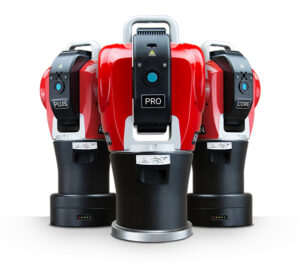

RADIAN PRO

PRO IFM/ADM tracker with unrivaled accuracy and comprehensive functionality including automated 6DOF tracking
RADIAN PLUS

PLUS provides extended CORE tracker functionality with hand-held tactile & laser scanning probes and offers 6DOF tracking.
RADIAN CORE

CORE offers economical SMR tracker functionality with benchmark accuracy in 50m and 80m ADM models.
