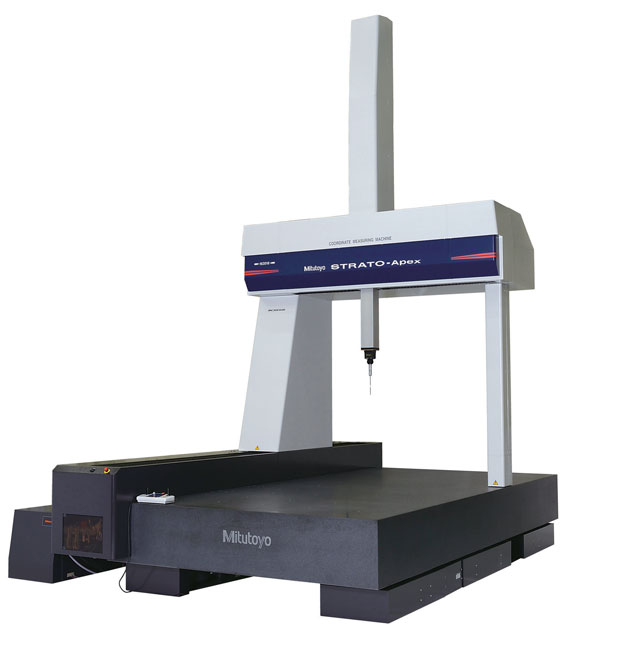

STRATO-Apex 1600 Series 355-High Accuracy CNC CMM


The FALCIO-Apex 1600 series is a large-sized CNC CMM developed for supporting quality evaluation and assembly of large parts.The scale systems on Mitutoyo high-precision models utilizes a high-performance linear encoder (manufactured by Mitutoyo), for detecting axis position. In addition, various technologies have been utilized in the structure, part processing, and assembly to provide high accuracy measurement. Floor vibration at the installation location, can be a source of variations in measured values. The auto leveling air spring vibration isolator is available as an option for FALCIO-Apex 1600 series. The vibration isolator insulates the main unit from floor vibrations and can quickly levels the CMM main unit, using a sensor that detects load fluctuations caused by axis movement of the CMM or workpiece loading. All STRATO-Apex highprecision series CMM’s are equipped with temperature compensation and therefore do not require a temperature controlled room. Accuracy is guaranteed within the range of 16 to 26°C.

Model STRATO-Apex 162012
Order No. 355-592-1
Range X-axis 62.99in1600mm

Y-axis 78.73in2000mm

Z-axis 47.24in1200mm

Resolution 0.0000019″ (0.00005mm)
Guide Method Air bearing on each axis
Speed Maximum Drive Speed 3D
23.85”/s (606mm/s)

Maximum Acceleration 3D
0.13G (1,350mm/s2)

Work Table Material-Granite

72.83×129.13in 1850x3280mm

Tapped insert-M8x1.25mm

Work piece Max.Load7,716lbs 3500kg

Max.Height 53.14in1350mm

Mass(incl. stand & controller) 24,582lbs 1115kg
Dimensions 110.43 x 145.07 x 170.87″ (2805 x 3685 x 2805mm)
