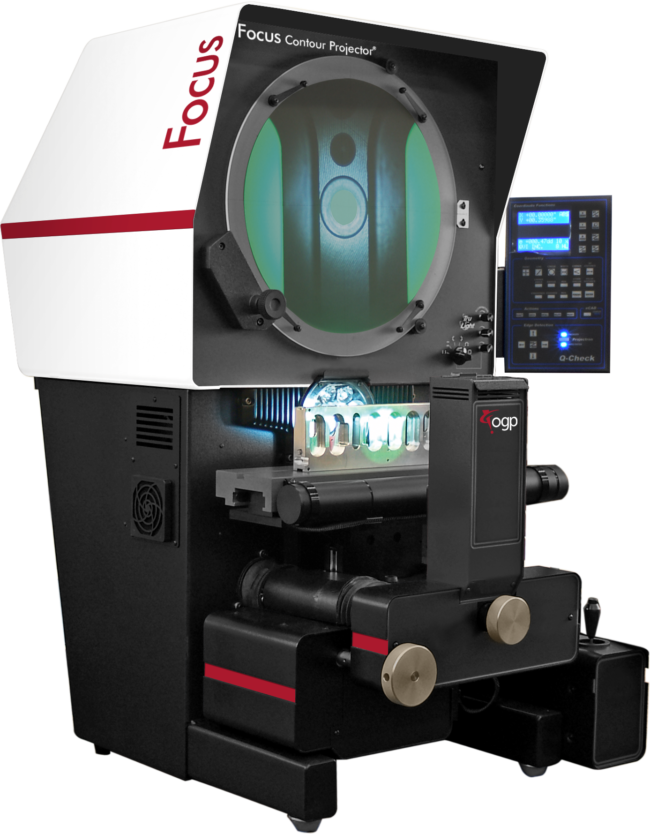

FOCUS CONTOUR PROJECTORS HIGH QUALITY, FULL-FUNCTION 14” OPTICAL COMPARATORS WITH THE MOST ADVANCED TECHNOLOGY AVAILABLE
TECHNICAL DATA
Focus™ Contour Projector® systems are high quality, full-function 14” optical comparators with the most advanced technology available and offer:
Vectored light control – Versatile TruLight® LED lighting illumination
Keep lenses safe and ready for use – 3 position internal lens turret
Ideal for real world, shop floor environments in a benchtop configuration –Rigid, all steel construction and solid metal castings
Optional VidiProbe video measurement, optional motorized servo drives, and optional Projectron automatic internal edge detection
XY TRAVEL
12” x 5”
15” x 5”
OPTICS
10X lens
20X, 31.25X, 50X, 100X
ILLUMINATION
Profile Light
Coaxial Light
Oblique Surface Illumination
SCREEN
16” diameter, 14” viewable ground glass screen, with integral hood, 90° centerlines and clips for mounting overlay charts
WORKTABLE
Manual, hard coat anodized aluminum with dovetail slot and ±6.5° helix angle range
Motorized with variable speed joystick
