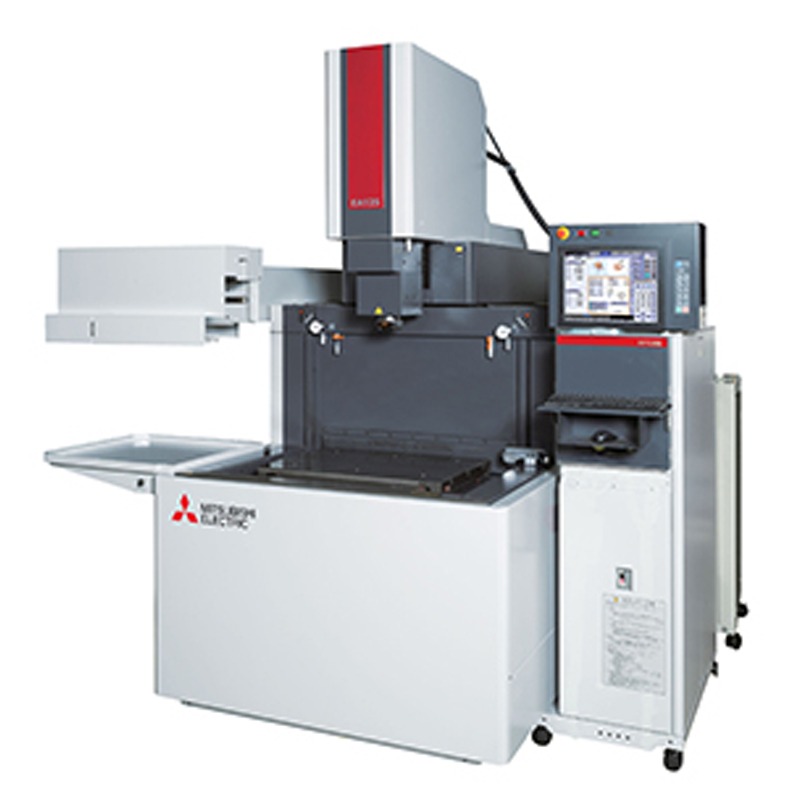

EA 12S ADVANCE SINKER EDM

Built for aerospace and molding applications – best for medium-sized parts.

The Mitsubishi EA12S Advance represents over 50 years of continuous innovation in sinker EDM technology from one of the most well-recognized industrial machining brands in the world. Sporting a slightly larger footprint that enables greater axis mobility and increased functionality, the EA12S Advance is a compact sinker EDM designed to support various micro-fine machining needs in a productive, cost-efficient way—all while being easy to operate.

Get a Quote

Benefits Details Specs Floor Plan

RELIABLE OPERATION

Highly durable components keep maintenance costs in their place while meeting project requirements.

COST-CONSCIOUS PRODUCTIVITY

Manages profit margins by balancing resources and energy consumption with high-speed production capabilities.

FULLY SUPPORTED

The EA12S is remote360-enabled, letting you react to potential problems in real time to help keep your lines running.

CAPABILITIES:

FP80S energy-saving power supply achieves 20% less electricity consumption compared to previous models
Power Master GF2 adaptive control reduces downtime and minimizes maintenance and part replacement costs by creating 80% less electrode wear
SS Jump 5 system grants users greater acceleration control to stabilize high-speed no-flush burning
Fuzzy Pro Plus enables greater hands-off operation for better usability
PS circuit standard allows for fine finishing

COMPONENTS:

FP80S power supply (provides 80 peak AMPs)
Compact, highly rigid machine design
Fixed table traveling column construction
Direct drive AC smart servo system
3D lateral servo system
3-sided drop tank access
Power Master GF2 adaptive control
Easy-access filter system
Dielectric fluid emission

ON-BOARD AUTOMATION:

Automatic lubrication system

USER INTERFACE:

M700 series CNC control with 15” touchscreen

SYSTEM INFORMATION:

40GB hard drive with a 1GB partition for user program storage
E.S.P.E.R. Advance program support functions

ADDITIONAL BENEFITS:

Full 2-year warranty with Triple Diamond Partnership Program
remote360-enabled (remote user monitoring, diagnostics, service support, and more)
Comes with one complimentary preventative maintenance visit—to be used by the end of 1^styear

MACHINE SPECS

Machine Travels: X x Y x Z in (mm)	15.7 x 11.8 x 11.8 (400 x 300 x 300)
Max. Dielectric Fluid Level: in (mm)	3.1 ~ 15.7 (79 ~ 400)
Power Supply (Option) / Peak Current	FP80S / 80 AMPs
Internal Worktank Dimensions: W x D x H in (mm)	35.4 x 27.5 x 17.7 (900 x 700 x450)
Max. Workpiece Weight: lb (kg)	2,200 (998)
Table Dimensions: W x D in (mm)	27.6 x 19.7 (702 x 500)
Max. Electrode Weight: lb (kg)	110 (50)
Table to Platen Distance Min.~ Max.: in (mm)	7.9 ~ 19.7 (200 ~ 500)
Table to C Axis Chuck Distance Min.~ Max.: in (mm)	7.9 ~ 19.7 (200 ~ 500) EROWA ITS Chuck
Table to C Axis Chuck Distance Min.~ Max.: in (mm)	7.2 ~ 19.0 (183 ~ 483) 3R MACRO Chuck
Filters / Type	Paper Cartridge(2 pc)
Machine System Weight: lb (kg)	7,716 (3,500)
C Axis Min. Indexing Angle / Drive Unit	0.001 ̊/ 0.001 ̊
C Axis RPM Range	1 to 30
Fluid Temp. Control	Chiller
Table to Platen Distance:in (mm)	7.9 -19.7 (201 -500)
Machine Unit Dimensions: W x D x H in (mm)	67.9 x 83.9 x 94.5 (1,725 x 2,132 x 2,400)
Control Unit Program Support Function	E.S.P.E.R Advance
Control Unit Machining Function	Fuzzy Pro 3 Plus
Control Unit Graphic Display Function	15” TFT color LCD
Control Unit CPU / Type	64-bit / PC
Dielectric Fluid System Reservoir Capacity: gal (L)	124 (470)

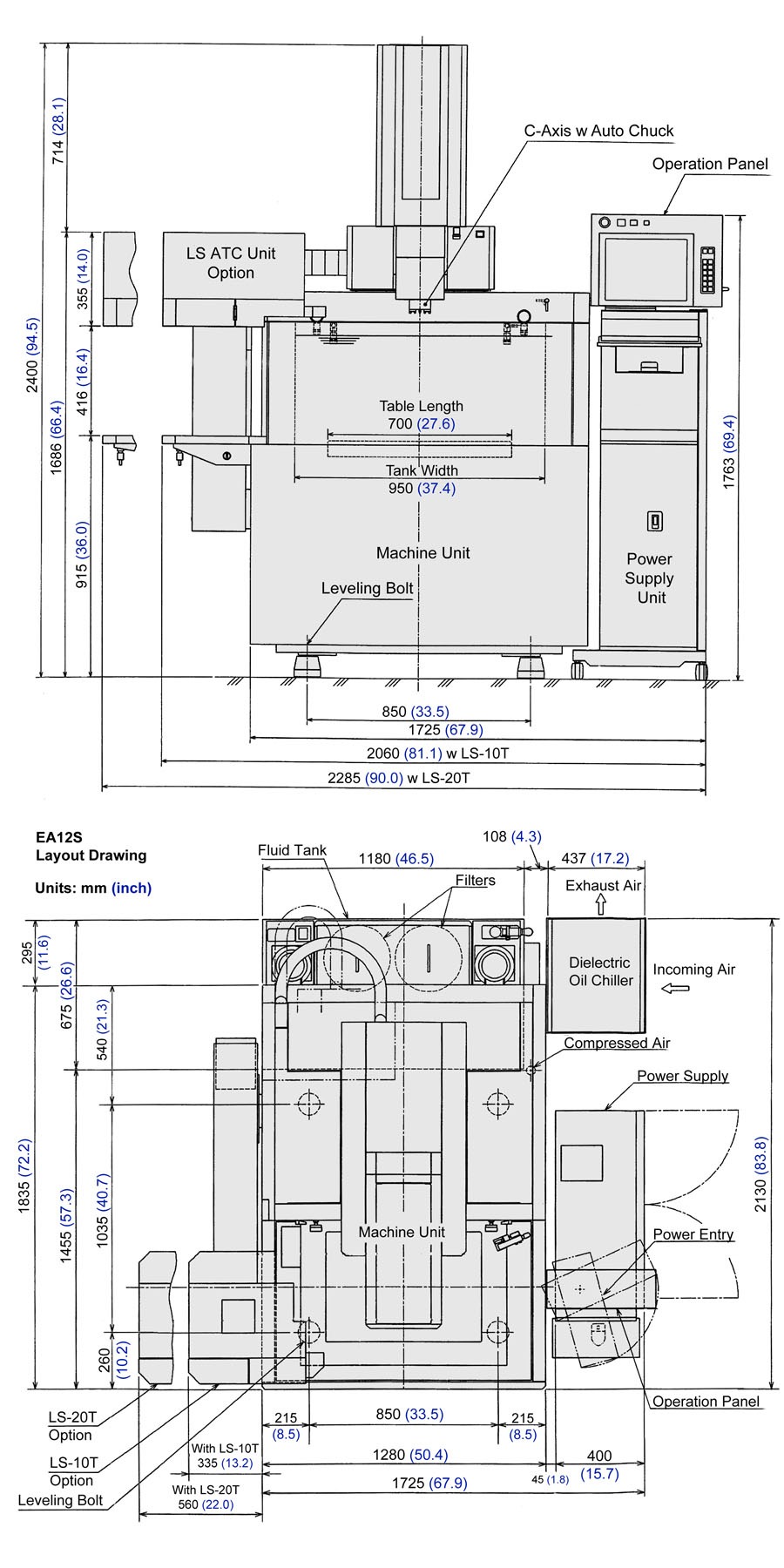

Installation Dimensions: W x D in (mm)	89.9 x 83.8 (2,281 x 2,130) wATC
Floor Space Requirement: sq ft	52.3
C Axis Max. Electrode Weight:lb (kg)	11 (5)

EA 12S ADVANCE SINKER EDM

MACHINE SPECS
