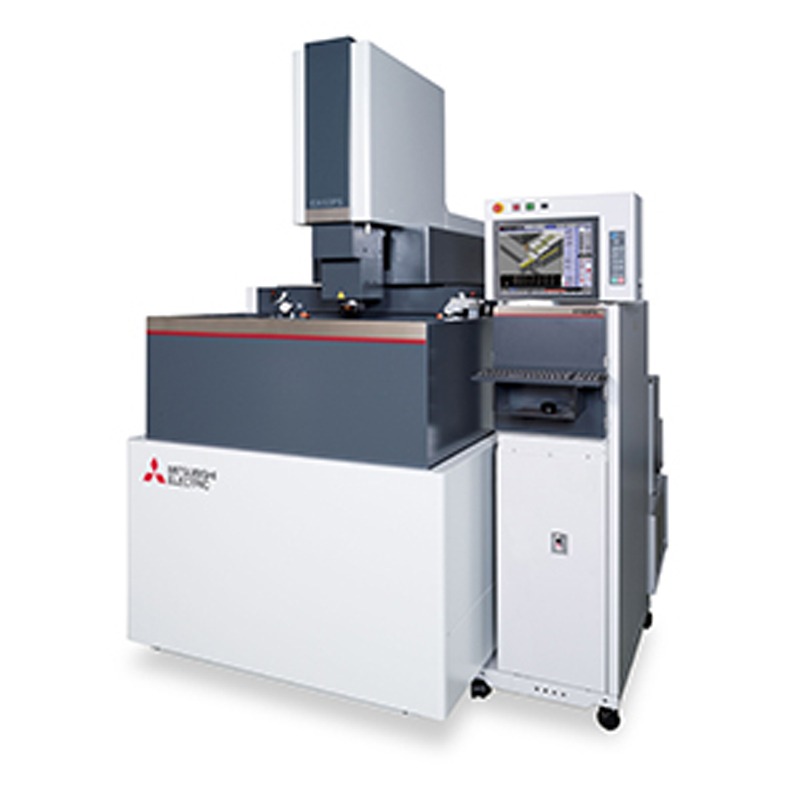

EA12PS ADVANCE SINKER EDM

A highly useful, highly accurate model that can handle all kinds of mold & die situations.

The EA12PS Advance can produce a variety of finishes—and can even handle exotic materials—while still maintaining the degree of quality and high-accuracy precision the world expects from Mitsubishi machines. The EA-PS series offers truly high-grade sinker EDM solutions that generate serious cost savings down the road—from hands-off, low-maintenance components that keep your shop floor humming to intuitive user-focused design that requires less learning, so you can spend more time doing.

Get a Quote

Benefits Details Specs Floor Plan

BUILT TO PERFORM, BUILT TO LAST

The Mitsubishi EA12PS Advance with Thermal Buster is the ideal choice for tight-tolerance applications such as die and mold.
The new Thermal Displacement Compensation System and Z axis cooling mechanism improve accuracy by tracking and compensating for machine temperature changes.

EXTREME VERSATILITY & UTILITY

The standard granite table and NP2 circuit provide an ultra-fine satin surface finish.
An enhanced glossy mirror finishing circuit, LLTX “Lotus Leaf TeXture,” improves mold release without the need for polishing.
If you work with exotic materials such as PCD, cBN, or carbide, the HPS circuit enhances machining speed while reducing electrode wear.

COST- AND USER-FRIENDLY

The FP80PS energy-saving power supply reduces electrical consumption by 20% (compared to the previous FP model).
Like most EDM machines, the EA12PS features the new Mitsubishi M700 series control with a 64-bit RISC processor and 15” touchscreen for easier user interface.

CAPABILITIES:

High-speed rapid travel: 275”/min.(7m/min.).
SS Jump5 with 984”/min.(25m/min.) jump speed @ 1.6G acceleration.
Can produce a variety of finishes, including:
- Ultra-fine matte finishing with the NP2 circuit standard (0.05μm Ra).
- Fine matte finishes with the PS circuit.
- Super-low wear with the SC circuit.
- Glossy mirror finishing with the LLTX “Lotus Leaf TeXture” system.
Handles exotic material machining, PCD, cBN,and carbide,with the HPS circuit .
Fuzzy Pro Plus enables greater hands-off operation for better usability.

COMPONENTS:

FP80PS power supply (provides 80 Peak AMPs).
Compact, highly rigid machine design.
Fixed table traveling column construction.
Direct drive AC smart servo system.
3D lateral servo system.
Thermal Buster thermal displacement compensation system.
3-sided drop tank access.
Easy-access filter system with two filter elements.
Dielectric fluid emission.
Dielectric fluid chiller standard.
Narrow gap circuit.
LLTX “Lotus Leaf TeXture” system.

OPTIONAL COMPONENTS:

FP120PS power supply (provides 120 Peak AMPs).

ON-BOARD AUTOMATION:

Automatic lubrication system.

USER INTERFACE:

M700 Series CNC control with15″ touchscreen.
Standard USB and Ethernet data inputs.

SYSTEM INFORMATION:

40GB hard drive with a 1GB partition for user program storage.
IDPM “Intelligent Digital Power Master” adaptive control.
Anti-virus protection.
E.S.P.E.R. Advance Pro Lite programming & program support functions.

ADDITIONAL BENEFITS:

Full 2-yearwarranty with Triple Diamond Partnership Program.
remote360-enabled (remote user monitoring, diagnostics, service support,and more).
Comes with one complimentary preventative maintenance visit—to be used by the end of 1st year.

Machine Travels X x Y x Z: in (mm)	15.7 x 11.8 x 11.8 (400 x 300 x 300)
Maximum Workpiece Size W x D x H: in (mm)	35.4 x 25.6 x 13.8 (900 x 650 x 350)
Max Dielectric Fluid Level: in (mm)	3.9 ~ 15.7 (100 ~ 400)
Power Supply (Option) / Peak Current	FP80PS / 80 AMPs (FP120PS / 120 AMPs)
Internal Worktank Dimensions W x D x H: in (mm)	37.0 x 27.5 x 17.7 (950 x 700 x 450)
Worktank / Door Type	3-Sided Drop Tank
Max. Workpiece Weight: lb (kg)	2,200 (1,000)
Table Dimensions W x D: in (mm)	27.6 x 19.7 (700 x 500)
Max. Electrode Weight on Platen: lb (kg)	176 (80)
Table to Platen Distance Min ~ Max: in (mm)	7.9 ~ 19.7 (200 ~ 500)
Table to C-Axis Chuck Distance Min ~ Max: in (mm)	7.9 ~ 19.7 (200 ~ 500) EROWA ITS Chuck
Table to C-Axis Chuck Distance Min ~ Max: in (mm)	7.2 ~ 19.0 (183 ~ 483) 3R MACRO Chuck
Minimum Command Unit / Resolution: in (mm)	.00001 / .000002 (.0001 / .00005)
Rapid Travel Speed: in/min. (mm/min.)	275.5 (7)
High-Speed Jump Maximum: in/min. (m/min.)[G]	984 (25)[1.6]
Linear Scale Resolution X, Y, Z-Axis Std.: µm	0.05
Filters / Type	2 pc. / Paper Cartridge
Filter Tank Capacity: gal (L)	124 (470)
Machine System Dimensions W x D: in (mm)	67.9 x 83.9 (1,725 x 2,130)
Machine Installed Height: in (mm)	95.2 (2,420)
Machine System Weight: lb (kg)	7,716 (3,500)
C-Axis Min. Indexing Angle / Drive Unit	.001º / .001º
C-Axis RPM Range	1 ~ 30
Fluid Temp. Control	Chiller Standard
Optional Internal Spindle RPM Range	1 ~ 1,500
Automatic Tool Changer Options	MVH-40
Power Requirements [KVA]	200/220 VAC ±5% [7 w FP80PS, 10 w FP120PS]
Compressed Air Requirements	2.7 cu.ft./min @ 90-100 psi
