30” diameter ground glass screen, with mounts in a precision metal rotary screen ring, 90° centerlines and clips for mounting standard overlay chart
XY Travel Standard
15” x 9”

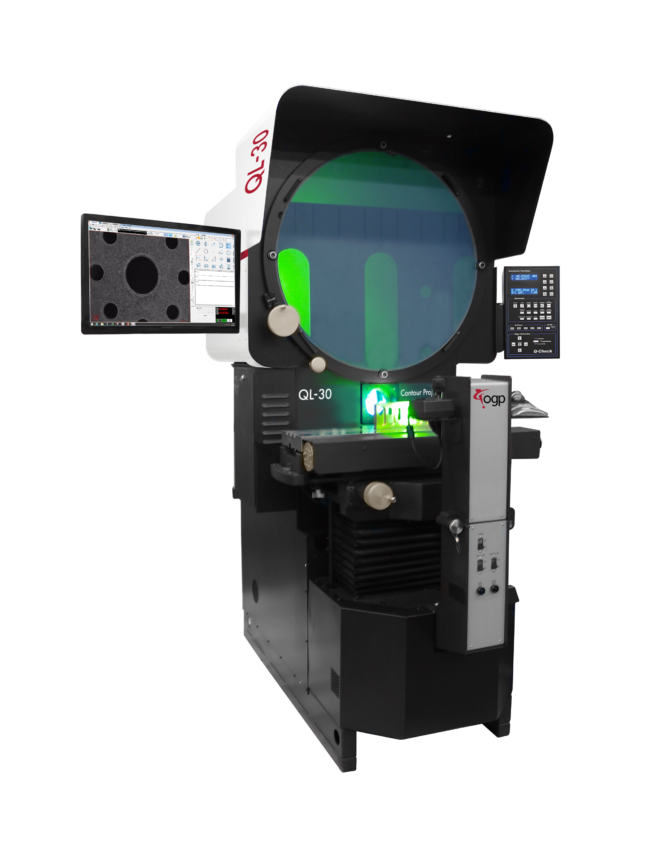

The QL-30™ Contour Projector® is an ultra-high capacity optical comparator that offers a large, bright image and compact footprint while still being able to handle the largest, heaviest parts. With the 30-inch diameter screen at eye level and easy access to parts and fixtures and standard mercury-arc profile lighting, the QL-30 is designed to provide great performance right where it is needed. QL-30 offers:
Standard mercury-arc profile lighting and optional mercury-arc surface light
Highly accurate rotational measurements – Precise rotary screen ring
Long-term reliability – Rigid construction and heavy-duty components
Full automation – Optional VidiProbe video measurement and eCAD® virtual chart gage systems
XY TRAVEL
15” x 9”
15” x 10”, 18” x 9”, 18” x 10”
OPTICS
10X lens
20X, 31.25X, 50X, 62.5X, 100X
ILLUMINATION
Profile Light
Coaxial Light
SCREEN
WORKTABLE
Motorized, heavy-duty nickel-clad cast-iron with dovetail slot
±7.5° helix angle range
